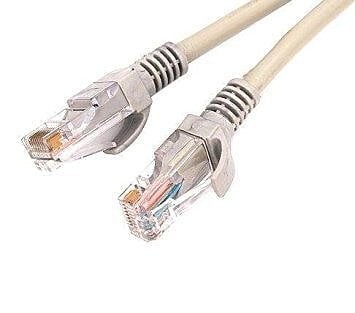

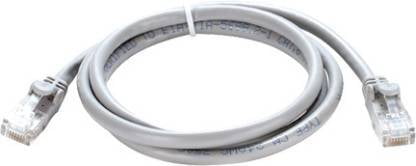

D-Link Cat6 UTP Patch Cord - Network RJ45 Cable 1 Metre (NCB-C6UGRYR1-1)
Brand : D-Link
Type : Patch Cable
Cable Type : Cat6 1000 Mbps Speed
UTP/STP Unshielded Twisted Pair (UTP)
Connector Material : Gold Plated
Cable Stranded Snagless
Cable Frequency 550 MHz
Ethernet Transmission Standard 10Base-T, 100Base-TX, 1000Base-T
Lifecycle 750 Times Mate/Demate Cycle
Model - NCB-C6UGRYR1-1
Color : Grey
Cable Length : 1 m
Material Conductor 0.51 mm Bare Copper 24AWG x 4pairs
Jacket PVC Jacket
Insulation HDPE Insulation
Other Insulation Features
Insulation Resistance 35M Ohm (max)
Supported Video Features
Other Video Features
550 MHz Broadband Video
Transmission Features
Rating Temperature 60 ° C
Other Transmission Features
1000Base-T, 10GBASE-T (IEEE802.3), 100VG-AnyLan (IEEE 802.12)
Additional Features
Compliance:
TIA/EIA 568C.2
Other Features
Dielectric Withstanding Voltage: 500V AC, Insulation Resistance: 35M Ohm, UL Application: 250V AC, Contact Blade: Phosphor Bronze
