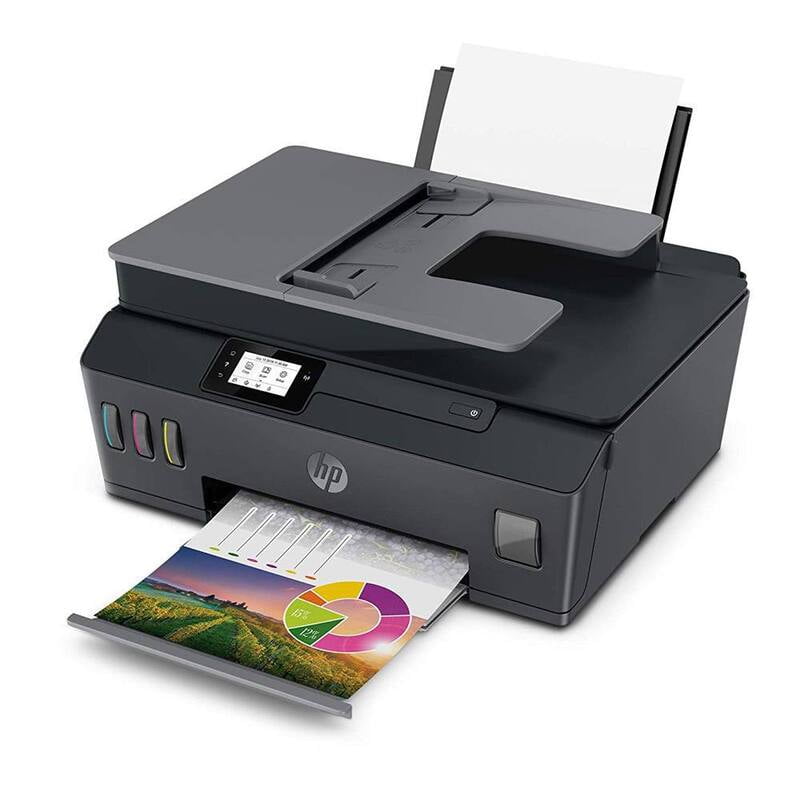

HP SMART TANK 530 AIO PRINTER

"Sku 4SB24A

PRINT

Print speed, black 11 - 20

Color output Color

Print speed, color <=10

CATEGORY

Product type Inkjet printers

Family brand Smart tank

USAGE

Perfect For Home

Usage Home and home office

FEATURES

Functions Print scan and copy

CONNECTIVITY AND COMMUNICATIONS

Connectivity, optional None

Connectivity, standard Hi-Speed USB 2.0, Wi-Fi, Bluetooth LE

Network capabilities Yes (via Wi-Fi)

Wireless capability Yes, built-in Wi-Fi 802.11b/g/n

Mobile printing capability HP Smart app; Apple AirPrint™; Fire™; Google Cloud Print 2.0; HP ePrint; Android printing; Mopria™-certified

Network protocols, supported 9100, SNMP, SLP, IPP, WS-Print, Wireless, LPR

Plug and play Set up from mobile device; Wi-Fi Protected Setup (WPS)

PRINTING MEDIA HANDLING

Finished output handling Sheetfed

Envelope input capacity Up to 10 envelopes

Output capacity Up to 30 sheets

Maximum output capacity (sheets) Up to 30 sheets

Paper handling input, standard 100-sheet input tray

Input capacity Up to 100 sheets

Paper handling output, standard 30-sheet output tray

Standard output capacity (envelopes) Up to 10 envelopes

Maximum input capacity (sheets) Up to 100 sheets

Standard input capacity (envelopes) Up to 10

Maximum input capacity (cards) Up to 30 cards

Maximum input capacity (10x15cm photos) Up to 30 sheets

Standard output capacity (legal) Up to 30 sheets

Maximum input capacity (photo paper) Up to 30 sheets

Maximum input capacity (4x6 photo) Up to 30 sheets

Standard input capacity (legal) Up to 100 sheets

Standard input capacity (cards) Up to 30 cards

Maximum output capacity (photo paper) Up to 30 sheets

Maximum output capacity (cards) Up to 30 cards

Standard output capacity (cards) Up to 30 cards

Maximum output capacity (labels) Up to 30 sheets

Maximum output capacity (envelopes) Up to 10 envelopes

DISPLAY SPECIFICATIONS

Display HP 5.59CM (2.2) MGD (Mono Touchscreen)

SCAN SPEED

Scan speed (normal, letter) Up to 3 ppm (200 ppi, color), Up to 5 ppm (200 ppi, mono)

Scan speed (normal, A4) Up to 3 ppm (200 ppi, color), Up to 5 ppm (200 ppi, mono)

CARTRIDGES AND PRINTHEADS

Technology Ink

Number of print cartridges 4 (1 each black bottle, set of 3 color bottles)

Ink types Dye-based (black); Pigment-based (color)

Print heads 2 (1 each black, tri-color)

Color(s) of printing supplies Black; Cyan; Magenta; Yellow

Print head nozzles 704 (Black), 588 (Tri-color)

Replacement cartridges HP GT53 90-ml Black Original Ink Bottle 1VV22AA; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AA; HP GT52 Cyan Original Ink Bottle M0H54AA; HP GT52 Magenta Original Ink Bottle M0H55AA; HP GT52 Yellow Original Ink Bottle M0H56AA. For more information about fill and yield, see http://www.hp.com/go/learnaboutsupplies.

Print colors maximum 4

PRINT SPEED

Print speed black (normal, letter) Up to 11 ppm

Print speed black (normal, A4) Up to 11 ppm

Print speed black (draft, A4) Up to 22 ppm

Print speed colour (normal, A4) Up to 5 ppm

Print speed Print speed up to 11 ppm (black,ISO) and 5 ppm (color,ISO)

Print speed colour (normal, 4x6 photo) As fast as 76 sec

Print speed colour (draft, A4) Up to 16 ppm

Print speed black (ISO) Up to 11 ppm

Print speed color (ISO) Up to 5 ppm

Print speed black (draft, letter) Up to 22 ppm

Print speed color (draft, letter) Up to 16 ppm

Print speed colour (normal, 10x15 photo) As fast as 76 sec

BATTERY AND POWER

Power Input voltage 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz). High voltage: Input voltage 200 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3Hz)

Power Consumption 0.11 watts (manual-off), 3.72 watts (ready), 0.83 watts (sleep)

Power supply type Internal built in

DIGITAL SENDER SPECIFICATIONS

Digital sending standard features Everyday scan (scan to PDF); HP Smart Tasks

File formats, supported BMP; PDF; JPG; PNG; TIF

Send to email capability No

PRINT TIME

First page out black (A4, ready) As fast as 14 sec

First page out color (A4, ready) As fast as 20 sec

PRINTER SPECIFICATIONS

Multitasking supported No

Duty cycle (monthly, letter) Up to 1000 pages

Envelope feeder No

Functions Print, scan, copy, ADF, wireless

Print languages HP PCL 3 GUI

Paper trays, maximum 1

Duty cycle (monthly, A4) Up to 1000 pages

Paper trays, standard 1

Recommended monthly page volume 400 to 800

Print technology HP Thermal Inkjet

Duplex printing Manual (driver support provided)

Automatic paper sensor No

Print colours Yes

Top key features Scan to PDF

Target user and print volume For teams up to 3 users; Prints up to 800 pages/month

Borderless printing Yes (up to 8.5 x 11 in, 210 x 297 mm)

Printer drivers included HP PCL 3 GUI

Photo proofsheets supported No

Vertical alignment accuracy +/- 0.02 mm

SCANNER SPECIFICATIONS

Scan size (ADF), maximum 216 x 356 mm

Scan file format JPG, BMP, TIFF, PDF, RTF, TXT, PNG

Color scanning Yes

Auto document feeder capacity Up to 35 sheets

Scanner type Flatbed, ADF

Scan size, maximum 216 x 297 mm

Levels of grayscale 256

Scan input modes Front Panel Scan; Copy; HP Software; EWS

Bit Depth 24-bit

Twain version Version 2.1

Scan technology Contact Image Sensor (CIS)

Image scaling or enlargement range 25 to 400%

Scanning options (ADF) Single-sided

Scan size, maximum 21.59 x 29.7 cm

Scan size (ADF), maximum 21.59 x 35.56 cm

CERTIFICATION AND COMPLIANCE

ENERGY STAR® certified Yes

Electromagnetic Emission Standard CISPR 32:2015/EN 55032:2015 Class B; CISPR24:2010/EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013; FCC CFR 47 Part 15B; ICES-003,2016 Issue 6; EN 301 489-1 V2.1.1:2017; EN 301 489-17 V3.1.1:2017 GB4943.1-2011, GB/T9254-2008, GB17625.1-2012 (CCC China); CNS14336-1, CNS13438 & CNS15663 (BSMI RoHS -Taiwan); EAC (Russia)

Safety Approvals and Requirements IEC 60950-1 & IEC 62368-1 compliant; Safety UL listed; EU LVD and EN 60950 & EN 62368 compliant; UL GS approved; Singapore Safety; Russia EAC; China CCC; Taiwan BSMI

Telecom compliance (fax capability) EN 300 328 V2.1.1:2016; EN 301 893 V2.1.0:2017

Environmental No

Compliance alliances None

GEOGRAPHIC

Country of origin Product of China

ENVIRONMENTAL

Non-Operating Humidity Range 5 to 90% RH (non-condensing)

Operating humidity range 15 to 80% RH (non-condensing)

Storage temperature range -40 to 60°C

Operating temperature range 5 to 40°C

Acoustic pressure emissions 50 dB

Acoustic power emissions 6.4 B(A)

Recommended operating temperature range 15 to 30°C  MEMORY

Memory slots No

Memory 256 MB; Integrated memory

Memory, maximum 256 MB

DIMENSIONS

Dimensions without stand (W x D x H) 449 x 373 x 198 mm

Package dimensions (W x D x H) 495 x 238 x 480 mm

Maximum dimensions (W x D x H) 449 x 605.65 x 258.7 mm

Minimum dimensions (W x D x H) 45 x 37.34 x 19.81 cm

Package dimensions (W x D x H) 49.5 x 23.8 x 48.1 cm

Dimensions with trays up (W x D x H) 449 x 373 x 198 mm

WEIGHTS

Weight 6.19 kg

Package weight 8.5 kg

Package weight 18.74 lb

SYSTEM COMPONENTS

Control panel 5.59cm (2.2) Touchscreen MGD (Mono graphics), power button, touch button (home, help, back)

PROCESSOR

Processor speed 1.2 GHz

SCAN RESOLUTION

Scan Resolution, Hardware Up to 1200 x 1200 dpi

Enhanced scanning resolution Up to 1200 dpi

Scan Resolution, Optical Up to 1200 dpi

Scan resolution enhanced disclaimer Up to 1200 ppi

COPY SPEED

Copy speed black (draft, A4) Up to 22 cpm

Copy speed colour (draft, A4) Up to 14 cpm

Copy speed color (ISO) Up to 2 cpm

Copy speed black (ISO) Up to 10 cpm

BOX CONTENTS

Cable included WW: No, please purchase (USB) cable separately; AP: Yes, 1.5 m (USB) cable (except Taiwan, Hong Kong and Singapore)

SUPPORTED PRINTING MEDIA

Media sizes supported A4; B5; A6; DL envelope, legal

Standard media sizes (duplex) A4; B5

Media weight, supported Plain paper: 60 to 90 g/m²; Envelopes: 75 to 90 g/m²; Cards: up to 200 g/m²; Photo paper: up to 300 g/m²

Media types Plain Paper, HP Photo Papers, HP Matte Brochure or Professional Paper, HP Matte Presentation Paper, HP Glossy Brochure or Professional Paper, Other Photo Inkjet Papers, Other Matte Inkjet Papers, Other Glossy Inkjet Papers, Inkjet Hagaki, Plain Paper, Thick, HP Tri-fold Brochure Paper, Glossy, Plain Paper, Light/Recycled

Media sizes, custom 76.2 x 127 mm to 215.9 x 355.6 mm

Media weight, recommended 75 g/m²

Media sizes supported, key 4 x 6 in; Letter; Legal; Envelopes

Media sizes supported, key 10 x 15 cm; A4; Envelopes

Media weight, supported Plain paper: 16 to 24 lb; Envelopes: 20 to 24 lb; Cards: up to 110 lb; Photo paper: up to 80 lb

Standard media sizes (duplex, imperial) Letter; Executive

Media sizes supported Letter; legal; 4 x 6 in; 5 x 7 in; 8 x 10 in; No. 10 envelopes

Media sizes, custom 7.62 x 10.16 cm to 21.59 x 35.56 cm

Media weight, recommended 20 lb

SYSTEM REQUIREMENTS

Minimum System Requirements for Macintosh OS X v10.11 El Capitan and above, Internet Access

Minimum System Requirements Windows 10, 7: 1 GHz 32-bit (x86) or 64-bit (x64) processor, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer 8.

SOFTWARE AND APPLICATIONS

Mac compatible Yes

Software included HP Printer Software, HP Update, HP Photo Creations

SUPPORTED OPERATING SYSTEMS

Compatible Operating Systems Windows 10, 7; OS X v10.11 El Capitan, macOS Sierra v10.12 (previously OS X), macOS High Sierra v10.13, macOS Mojave v10.14

Operating system (supported note) Windows 10, 7; OS X v10.11 El Capitan, macOS Sierra v10.12 (previously OS X), macOS High Sierra v10.13, macOS Mojave v10.14

PRINT RESOLUTION

Print quality black (best) Up to 1200 x 1200 rendered dpi

Print quality color (best) Up to 4800 x 1200 optimized dpi color (when printing from a computer and 1200 input dpi)

RACK AND POWER SPECIFICATIONS

Typical electricity consumption (TEC) number 0.14 kWh/Week

Number of users 1-3 Users

PRINT AREA

Maximum print area 216 x 355 mm

Right margin (A4) 3 mm

Top margin (A4) 3 mm

Bottom margin (A4) 3 mm

Left margin (A4) 3 mm

ADVANCED FEATURES

Scanner advanced features No

Printer smart software features No

Fax smart software features No

Energy savings feature technology HP Auto-Off Technology

COPIER SPECIFICATIONS

Copies, maximum Up to 99 copies

Copier settings Number of Copies, Resize, Quality, Lighter/Darker, Papersize, Papertype, ID Copy, Collate, Enhancement

Colour copy capability Yes

COMPATIBILITY

Accessories None

Orderable supplies HP GT53 90-ml Black Original Ink Bottle 1VV22AA; HP GT53XL 135-ml Black Original Ink Bottle 1VV21AA; HP GT52 Cyan Original Ink Bottle M0H54AA; HP GT52 Magenta Original Ink Bottle M0H55AA; HP GT52 Yellow Original Ink Bottle M0H56AA

FAX SPECIFICATIONS

Distinctive ring detection supported No

PRODUCT NAMES

Sub-brand name Smart Tank

MULTIMEDIA AND INPUT DEVICES

Camera phone supported No

Camera phone description Direct printing from camera phone via Wireless or Wireless Direct

CAMERA SPECIFICATIONS

Video action printing supported No

PictBridge supported No

PictBridge description No"
